| Реле Helishun: |
| Реле He Li Shun надежные и недорогие. Здесь их можно купить, заказать, оплатить(налично и с НДС). He Li Shun производит реле общего применения, телекоммуникационные, слаботочные, мощные, автомобильные и ультратонкие реле. Больше 40 моделей реле на различные напряжения, токи и мощность. Мы подберем нужное вам реле по фотографии, схеме или документации. Реле He Li Shun имеют сертификаты UL, cUL, TUV, VDE и CQC и т.д. |
 |
Название / Управление |
Цена с НДС* |
Упаковка |
Группы |
Рабочий ток
на 1 гр |
pdf |
Полные аналоги |
 |

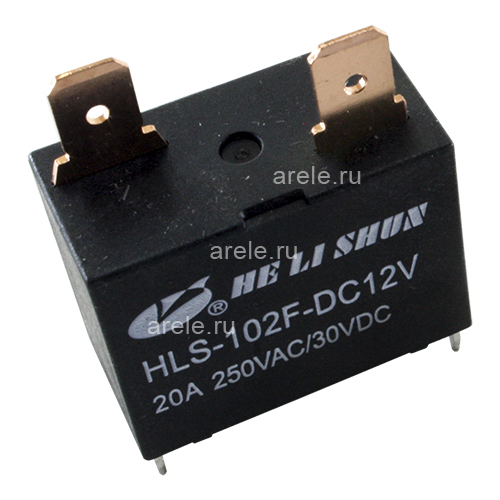

HLS-102F
HLS-102F-DC12V
HLS-102F-DC24V
TRAF D-12VDC-S-H
|
88р. |
350шт
35шт
|
1 вкл.
(1A) |
20A 240VAC
20A 30VDC |
  |
JQX-102F-AZ-20-DC12V-0.9, CMP6-S-DC12V, 948-1A-12D, NRP-20-A-12D, G4A-1A-E 12VDC, MPY-S-112-A, SFK-1-12DM, 891WP-1A-C-12VDC, TRG4-12VDC-SB-A, TRAF-12VDC-S-H, HF102F/T-12VDC, AZ7695-1A12D, AZ769-1A-12D
|
 |

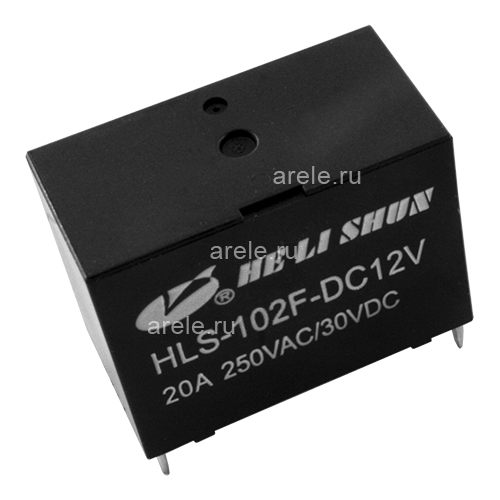

HLS-102F-WT
HLS-102F-DC12V-WT
|
100р. |
350шт
35шт
|
1 вкл.
(1A) |
20A 240VAC
20A 30VDC |
|
JQX-102F-AZ-20-b-DC12V-0.9, JQX-54FE-AZ25b-DC12V-C, GI-S-112DMPI, CMP6-S-DC12V-P, 948-1A-12DP, NRP-20-A-12D-P, MPY-S-112-A-P, G4A-1A-PE 12VDC, SFK-1-12DMP, 891P-1A-C-12VDC, TRG4-12VDC-SB-AP, TRAF-12VDC-S-H-P, HF102F-P/T-12VDC, FTR-K3JA012W, PCFN-112H2MG, AZ7695-1A12DK, AZ769-1A-12K, ALF-1T-12, JM1aN-P-DC12V-F, ALFG1PF-12 |
 |

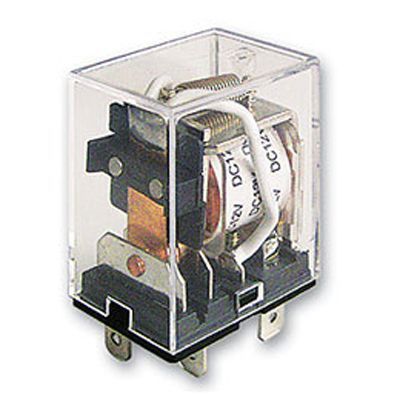

HLS-13F-1
HLS-13F-1-DC12V
HLS-13F-1-DC24V
HLS-13F-1-AC240V
LY1-12VDC
|
129р. |
400шт
25шт
|
1 перекл.
(1C) |
16A 240VAC
16A 30VDC |
|
|
 |

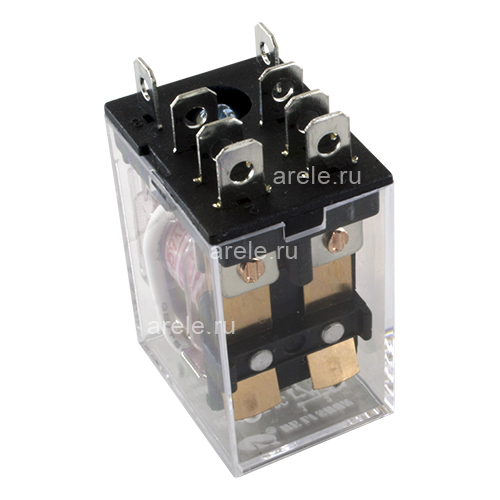

HLS-13F-2
HLS-13F-2-DC12V
HLS-13F-2-DC24V
HLS-13F-2-AC240V
LY2-12VDC,
LY2-24VDC,
LY2-240VAC
|
101р. |
400шт
25шт
|
2 перекл.
(2C) |
10A 240VAC
10A 30VDC |
|
JQX-13F(LY2)-2Z 12VDC, 56.32.9.012.0000, JQX-13F-2Ca-DC12V, RET-2-02D, LH-DC12V-Q-2C, Y06-2C-12D, 951-2C-12D, HHC68A-2C12D, LY2-12VDC, MPN-212-C1, 13F-2 (SCL) 12VDC 10A, SME-212DT, SCL-DPDT-12VDC, SMBH-12VDC-F-L-2C, HJQ-13F-2С-12VDC, TRL-12VDC-S-2C, DRL270012, HK13F-DC12V-2C, WJ151-2C-T-12VDC, HF13F/012-2Z-1, HH62P-DC12V, RY2-1012-26-1012 |
 |

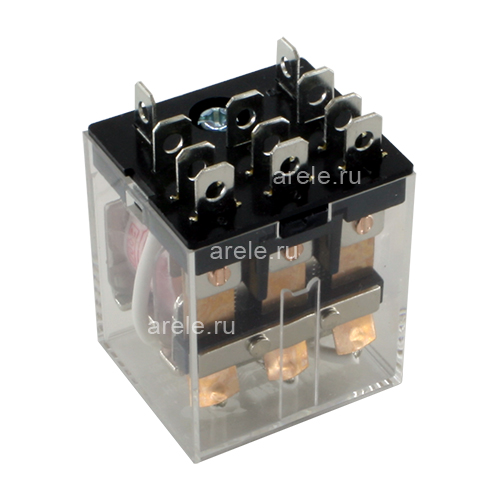

HLS-13F-3
HLS-13F-3-DC12V
HLS-13F-3-DC24V
HLS-13F-3-AC240V
LY3-12VDC,
LY3-24VDC,
LY3-240VAC
|
205р.
|
400шт
20шт
|
3 перекл.
(3C) |
10A 240VAC
10A 30VDC |
|
JQX-13F(LY3)-3Z 12VDC, JQX-13F-3Ca-DC12V, RET-302D, 951-3C-12D, HHC68A-3C-12D, LY3-12VDC, DRL370012, HH63P-DC12V, RKL3CO-012, YL220-3C-12VDC, РЭК77/3 10А 12В DC, РП-63 10А 12В DC |
 |

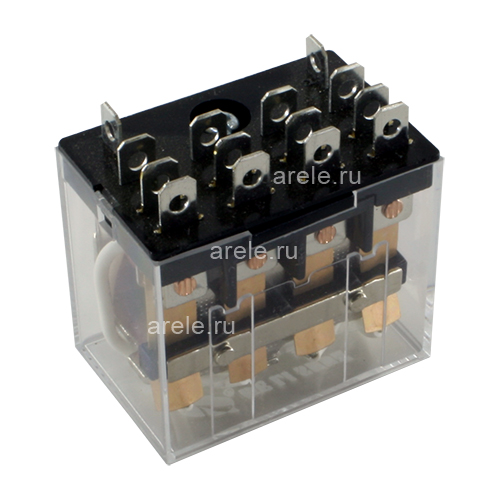

HLS-13F-4
HLS-13F-4-DC12V
HLS-13F-4-DC24V
HLS-13F-4-AC240V
LY4-12VDC,
LY4-24VDC,
LY4-240VAC
|
215р.
|
200шт
20шт
|
4 перекл.
(4C) |
10A 240VAC
10A 30VDC |
|
JQX-13F(LY4)-4Z 12VDC, 56.34.9.012.0000, JQX-13F-4Ca-DC12V, RET-402D, 951-4C-12D, HHC68A-4C12D, LY4-12VDC, MPN-412-C1, DRL570012, HH64P-DC12V, RKL4CO-012, YL220-4C-12VDC, РЭК77/4 10А 12В DC, РП-64 10А 12В DC |
 |

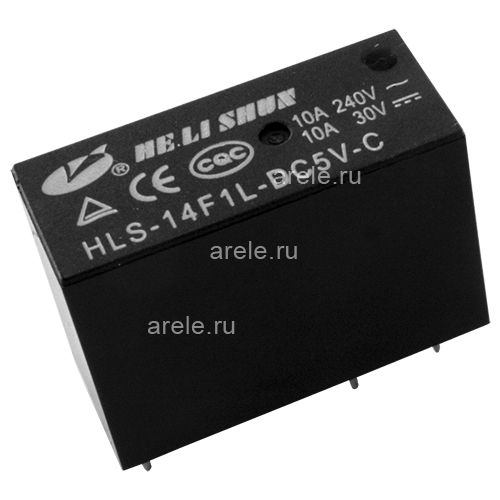

HLS-14F1
HLS-14F1L-DC5V-C
HLS-14F1L-DC12V-C
HLS-14F1L-DC24V-C
|
72р. |
1000шт
25шт
|
1 перекл.
(1C) |
10A 240VAC
10A 30VDC |
|
JQX-14FL-1Z 12VDC, 40.31.7.012.0000, JQX-141FF-1C-S-5A-12VDC-0.54-3.5, MIH-SH-112L, HRM-H-S-DC12V-C, 942H-1C-12DS, NRP-12-C-12D-H, HHC69A-1Z-12D-10A, G2R-14-12VDC, MPJ1-S-112-C, 14F1 (JQX-14F1) 12VDC 10A, SMIH-SH-112L, 845HN-1C-S-12VDC, SMI-12VDC-S-L-C, TRA1-L-12VDC-S-Z, TRI-12VDC-SB-1C-LH, HK14F-DC12V-SD1C, WJ112H-1C-12VDC, HF141FF/12-ZS, HF14FF/12-ZS, FBR6-11-N-D012, RM92-1011-25-S12, OMI-SS-112L1, AZ6975-1C-12DS, AZ697-1C-12D, JW1FSN-DC12VF, RT114-012, RP418012, RKS-5DG-12 |
 |

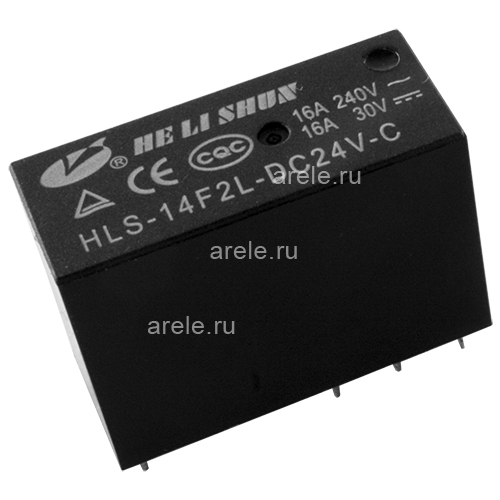

HLS-14F2
HLS-14F2L-DC5V-C
HLS-14F2L-DC9V-C
HLS-14F2L-DC12V-C
HLS-14F2D-DC12V-C
HLS-14F2L-DC24V-C
HLS-14F2D-DC24V-C
|
66р. |
1000шт
25шт
|
1 перекл.
(1C) |
16A 240VAC
16A 30VDC |
|
JQX-14FL-1Z 12VDC, 40.61.7.012.0000, JQX-141FF-1C-S-16A-12VDC-0.54-5, GZ-SH-112L, HRM2-H-S-DC12V-C, 942H-1C-12DS-T, NRP-14-C-12D-H, HHC69A-1Z-12D-16A, G2R-1-E-12VDC, MPJ2-S-112-C, 14F2 (845) 12VDC 16A, SZ-SH-112L, 793-P-1C-S-12VDC, SMIH-12VDC-SL-C, TRIH-12VDC-SB-1CM, TRA2-L-12VDC-S-Z, RCI314012VDC, HK14FH-DC12V-SD1C, WJ114-1C-12VDC-0.54, JQX-14FW-012-ZS, HF14FW/012-ZS, FBR6-11-N-D012-K, VSB-12STC, AZ7555-1C-12DSK, AZ755-1C-12D, AZ725-1C-12D, OZT-SS112L1, RP710012, RKS-5DW-12 |
 |

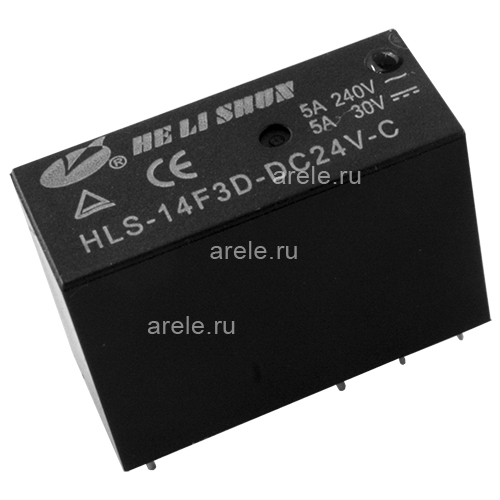

HLS-14F3
HLS-14F3L-DC5V-C
HLS-14F3L-DC12V-C
HLS-14F3L-DC12V-C-T
HLS-14F3D-DC12V-C
HLS-14F3L-DC24V-C
HLS-14F3D-DC24V-C
|
69р. |
1000шт
25шт
|
2 перекл.
(2C) |
5A 240VAC
5A 30VDC |
|
JQX-14FL-2Z 12VDC, 44.52.7.012.0000, JQX-141FF-2C-S-5A-12VDC-0.54-5, MI-SS-2-12-L, HRM1-H-S-DC12V-C, 942H-2C-12-DS, NRP-13-C-12D-H, HHC69A-2Z-12D-5A, G2R-24-12VDC, MPJ2-S-212-C, SMI-SH-212L, 845-2C-S-12VDC, SMI-2P-12VDC-S-L, TRA3-L-12VDC-S-2Z, TRI-12VDC-SB-2C-LM, RCI424012VDC, HK14FD-DC12V-SD2C, WJ113H-2C-12VDC, HF140FF/12-2ZST, JZX-140FF/12-2ZS, FBR6-21-N-D012, RP420012 |
 |

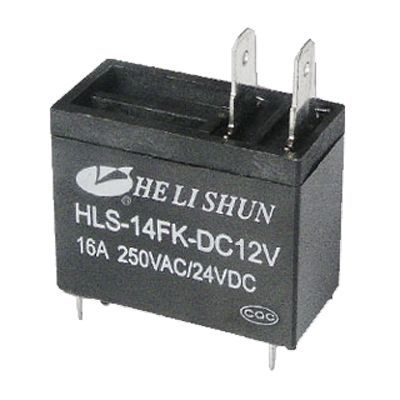

HLS-14FK (Не выпускается)
HLS-14FK-DC12
HLS-14FK-DC24
TRA2F-12VDC-H |
70р. |
500шт
40шт
|
1 вкл.
(1A) |
16A 240VAC
16A 24VDC |
|
TRA2F-12VDC-H, F5-DC12V-P1, 954-1A-12DMP-4, MPL-S-112-A, SMT-112DM, 302-WP2-1AC-C-12VDC, TRIHF-12VDC-SB-A, SMIH(14FHA)-12VDC-S-L-A, G5J-1-TP-M-12VDC, HF62F/12-1HT, HF78F/12-HSTF, FTR-JR-JB-012W, OMIF-S-112LM, AZ756-1A-12D, ALE-13B-12VDC, JR-1aF-TMP-12VDC |
 |

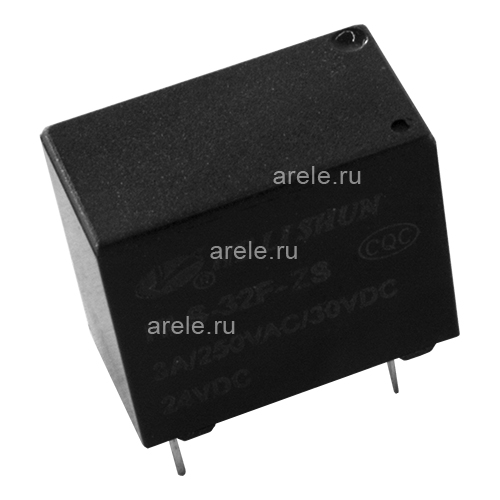

HLS-32F
HLS-32F-ZS-DC5V
HLS-32F-ZS-DC12V
HLS-32F-ZS-DC24V
JZC-32F-C-S-5-DC5V-0.45,
JZC-32F-C-S-5-DC12V-0.45,
JZC-32F-C-S-5-DC24V-0.45,
TRG1H-D-12VDC-S-H,
TRG1H-D-24VDC-S-H |
51р. |
1500шт
75шт
|
1 перекл.
(1C) |
3A 240VAC
3A 24VDC |
|
JZC-32F-1Z-5A-24VDC, JZC-32F-CS-5-DC24V-0.45, GJ-SS-124D, HRS3-S-DC24V-C, NRP-05-C-24D-H, MPD-S-124-C, 32F (JZC-32F) 24VDC 5A, SJ-SH-124DM, 307-1AH-S-24VDC, TRG1-D-24VDC-S-Z, HK32F-DC24V, WJ105-1C-24VDC-0.45, HF32F/024-ZS, RM32N-3011-85-1024, AZ770-1C-24DK, AZ7671-1C-24D |
 |

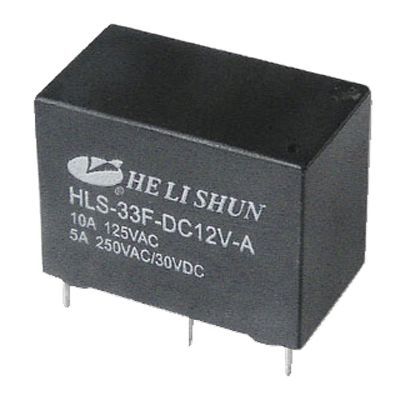

HLS-33F (Не выпускается)
HLS-33F-ZS-DC5V-L
HLS-33F-ZS-DC12V-L
HLS-33F-ZS-DC24V-L
JZC-33F-C-S-5-DC5V-0.45,
JZC-33F-C-S-5-DC12V-0.45,
JZC-33F-C-S-5-DC24V-0.45 |
51р. |
1000шт
50шт
|
1 перекл.
(1C) |
5A 240VAC
5A 24VDC |
|
TRG2 D-12VDC-S-Z, 32.21.7.012.2300, JZC-33F-CS-5-DC12V-0.45, JQ-SH-112D, JE-112DM, HRS3T-S-DC12V-C, 134-1C-12DS, Y33-1C-12DS, NRP-05E-C-12DH, G5Q-1-EU12VDC, G5SB-1412VDC, 33F 12VDC 10A, SJE-SH-112D, 101-1AC-S-12VDC, 892-1CH-S-12VDC, SRSC-12VDC-S-C-L, TRJ-12VDC-SB-CD, WJ105E-1C-12VDC, HF33F/012-H, JY-12HE-K, RM45N-3011-85-1012, RE03-0012, AZ940-1C-12D, JQ1-12V-F, AZ9405-1C-12DSEF, PQ1a-12V
|
 |

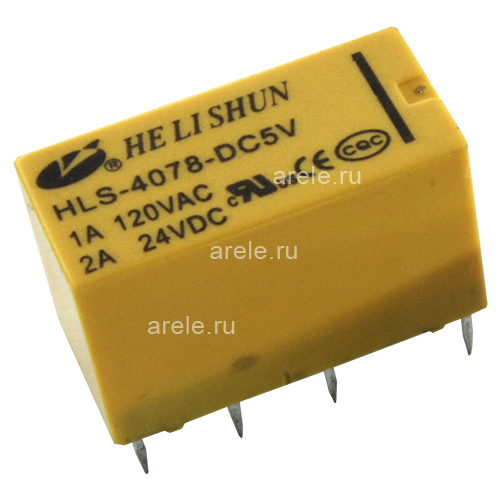

HLS-4078
HLS-4078-DC3V
HLS-4078-DC5V
HLS-4078-DC9V
HLS-4078-DC12V
HLS-4078-DC24V
HJR1-2C-L-05VDC,
HJR1-2C-L-12VDC,
HJR1-2C-L-24VDC,
JRC-19F(4078)-5VDC-0.2,
JRC-19F(4078)-12VDC-0.2,
JRC-19F(4078)-24VDC-0.2 |
36р. |
1000шт
20шт
|
2 перекл.
(2C) |
1A 120VAC
2A 24VDC |
|
HJR1-2C L-12VDC, JRC-19F 12VDC, ASJRC-19F-12VDC-0.2, 30.22.7.012.0010, MCB-S-212-C-S, N4078-2C-12VDC-0.2, RY-12W-K, GS-SH-212T, HRS2H-S-DC12V-N, HFD27/012-S, 941H-2C-12D, NRP-04-C-12D-H, G5V-2-H1-12VDC , DS2Y-S-DC12V, RSM822N-6112-85-S012, 4078 12VDC 2A, DSY2Y-S-212L, 502N1-2C-S-12VDC, 876AN-2C-S-12VDC, SRC-12VDC-S-H, TRS-12VDC-SB-L20, TRSB-12VDC-SB-L20, V23079-A1003, HK19F-DC12V-SH-2C, WJ104H-2C-12VDC, HFD27/012-S, HFD2/012-M, RY-12W-K, FBR244-ND-012/02C, FTR-C2-CA-012, RSM822N-6112-85-S012, MT2 C-93418, AZ822-2C-12DE, AZ821-2C-12DSE, AZ831-2C-12DSE, DS2Y-S-DC12V, JRC-27F/012-S, AZ826-2C-12DSE, BT-12S, BTL-12, M1B-12-HAW, M1BS-12-HAW, M4-12-HAW, M4S-12-HAW, V23105-A5-303-A201, GM4-SH-212T, G6A-274P-ST-12VDC, RA-12W-K, AZ8222-2C-12DSE, AZ830-2C-12DSE, AZ832-2C-12DE, OVR-SH-212L, T85-N11D-114-12, T83-S11D2-12-12, YL202-2C-12VDC
|
 |

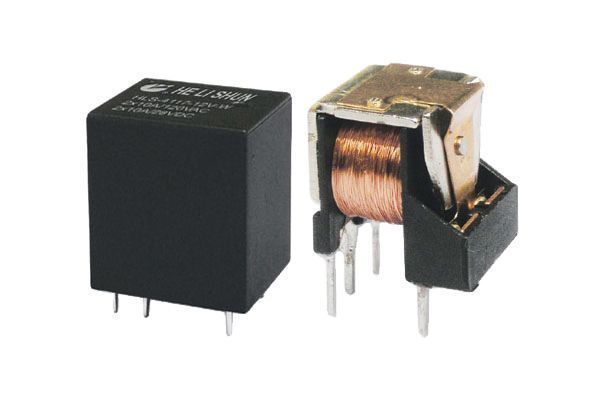

HLS-4117
HLS-4117-12VDC-S-1W
HLS-4117-24VDC-S-1W
TRAW-S-SZ-12VDC,
TRAW-S-SZ-24VDC |
37р.
|
1000шт
50шт
|
1 перекл.
(1C) |
15A 14VDC |
|
|
 |

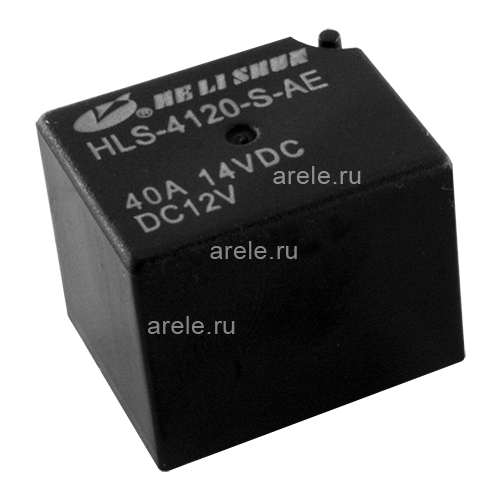

HLS-4120
HLS-4120-DC12V-S-AE
HLS-4120-DC12V-S-CE
HLS-4120-DC24V-S-AE
HLS-4120-DC24V-S-CE
|
53р. |
600шт
30шт
|
1 перекл.
(1C) |
30A 14VDC |
|
4120-CS-30-DC12V-1.6-E, JQC-4-CS-30-DC12V-1.6-E, CAR-SH-112DE, CMA4-S-DC12V-C-E, 956-1C-12DSE, NRA-06-C-12D-E-S, MAG-S-112-C-4, 4120 12VDC (822) 30A, SARB-SH-112DE, 822E-1C-S-12VDC, SLB-12VDC-S-L-C-E, TRKP-L-S-Z-2-12VDC, TRP-12VDC-SA-C11, G8PE-1C4-12VDC, HKV3-DC12V-1C, WJ206E-1C-12VDC, HFKP/012-1Z4T, FRL-274-ND012/81-С, V23076-A1001-C13, AZ9711E-1C-12DET, AZ971E-1C-12D, BS-105CS-12VDC-UR, VKM-31F42-12VDC, YL317-12VDC-C
|
 |

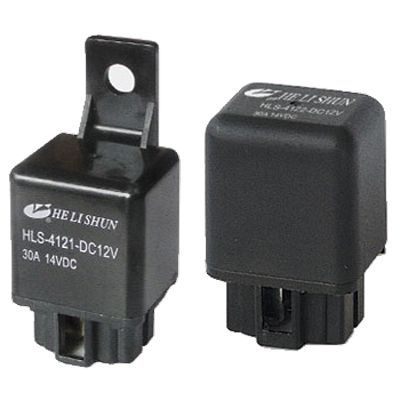

HLS-4121
HLS-4121-DC12V
HLS-4121-DC24V
HLS-4121-DC12V-NS
HLS-4121-DC24V-NS
CM6321-1H-12D
|
71р. |
1000шт
50шт
|
1 перекл.
(1C) |
30A 14VDC |
|
|
 |

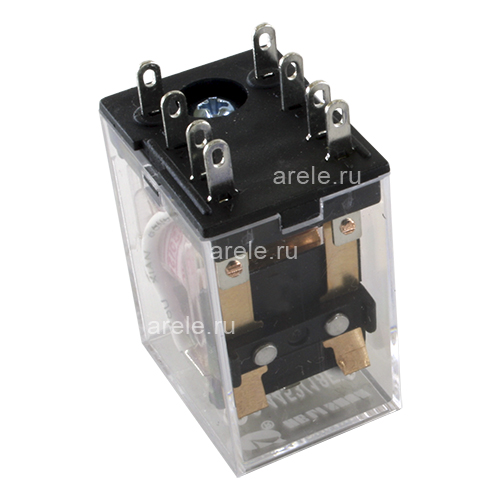

HLS-4453(18F)-2
HLS-4453(18F)-DC12V-2C
HLS-4453(18F)-DC24V-2C
HLS-4453(18F)-AC240V-2C
|
69р. |
400шт
25шт
|
2 перекл.
(2C) |
7A 240VAC
7A 30VDC |
|
HH52P-12VDC, MY2-12VDC, 55.32.9.012.0000, JZX-18FF-2Ca-DC12V-1, RE-202D, LT-DC12V-Q-2C, 952-2C-12D, HHC68B-2C12D, MY2-12VDC, MPM-212D-C-1, SMET-212DT, SCLB-W-DPDT-C-12VDC, SMB-12VDC-F-L-2C, HJQ-22F-12VDC-2Z, TRY-12VDC-S2C, DRM270012, HK18F-DC12V-2C, WJ152-2C-T-12VDC, HF18FF/12-2Z1, HH52-RM2CP-DB, R2-2012-23-1012, PT220012, AZ165-2C-12D, RKF2O-012, HC2-H-DC12V, CR-M012DC2, BMY-2C-12VDC, KHAU-11D12-12, NRG52-2-C-12D-T, HJQ-18F-2Z 12VDC, AZ1651-2C-12D, YL440-2C-12VDC, HJ2-DC12V, R2N-2012-23-1012, RKE2CO-012, RKM2CO-012 |
 |

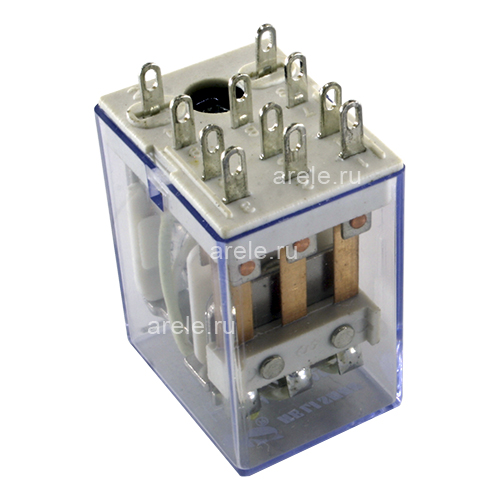

HLS-4453(18F)-3
HLS-4453(18F)-DC12V-3C
HLS-4453(18F)-AC24V-3C
HLS-4453(18F)-DC24V-3C
HLS-4453(18F)-AC240V-3C
|
79р. |
400шт
25шт
|
3 перекл.
(3C) |
7A 240VAC
7A 30VDC |
|
HH53P-12VDC, MY3-12VDC, 55.33.9.012.0000, JZX-18FF-3Ca-DC12V-1, LT-DC12V-Q-3C, 952-3C-12D, HHC68B-3C12D, MY3-12VDC, MPM-312D-C-1, 4453(18F)-3 (HH53P) 12VDC 5А , SMET-312DT, SCK-W-DPDT-C-12VDC, SMB-12VDC-F-L-3C, HJQ-22F-12VDC-3Z, HK18F-DC12V-3C, WJ152-3C-T-12VDC, HF18FF/12-3Z1, HH53-RM3CP-DB, R3-2012-23-1012, PT320012, AZ165-3C-12D, HC3-H-DC12V, CR-M012DC3, NRG52-3-C-12D-T, HJQ-18F-3Z 12VDC, AZ1651-3C-12D, YL440-3C-12VDC, РЭК78/3 5А 12В DC, РП-54 5А 12В DC, R3N-2012-23-1012
|
 |

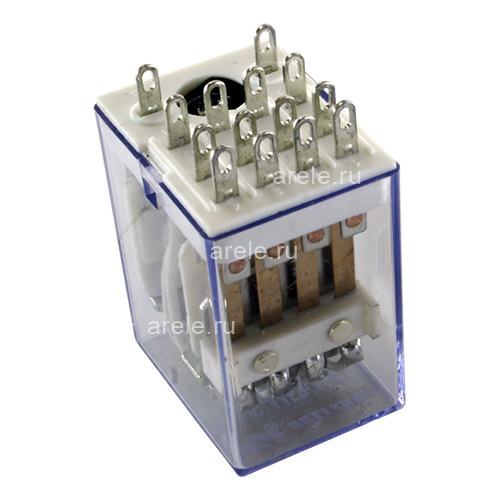

HLS-4453(18F)-4
HLS-4453(18F)-DC12V-4C
HLS-4453(18F)-AC24V-4C
HLS-4453(18F)-DC24V-4C
HLS-4453(18F)-AC240V-4C
HJQ-22F-12VDC-4Z,
HJQ-22F-24VDC-4Z,
MY4-240VAC |
100р. |
400шт
25шт
|
4 перекл.
(4C) |
5A 240VAC
5A 30VDC |
|
HH54P-12VDC, MY4-12VDC, 55.34.9.012.0000, JZX-18FF-4Ca-DC12V-1, RE-402D, LT-DC12V-Q-4C, 952-4C-12D, Y07-4C-12D, HHC68B-4C12D, MY4-12VDC, MPM-412D-C-1, 4453(18F)-4 (HH54P) 12VDC 5А , SMET-412DT, SCLD-W-4PDT-C-12VDC, SMB-12VDC-F-L-4C, HJQ-22F-12VDC-4Z , TRY-12VDC-S4C, DRM570012, HK18F-DC12V-4C, WJ152-4C-T-12VDC, HF18FF/12-4Z1, HH54-RM4CP-DB, R4-2012-23-1012, PT520012, AZ165-4C-12D, RKF4O-012, HC4-H-DC12V, CR-M012DC4, BMY-4C-12VDC, KHAU-11D17-12, NRG52-4-C-12D-T, AZ1651-4C-12D, YL440-4C-12VDC, HJ4-DC12V, РЭК78/4 3А 12В DC, РП-54 3А 12В DC, R4N-2012-23-1012, RKE4CO-012, RKM4CO-012, РП–Ир2-1.4.П.0.0.D.012.0.00, РЭП-18-004-12В
|
 |

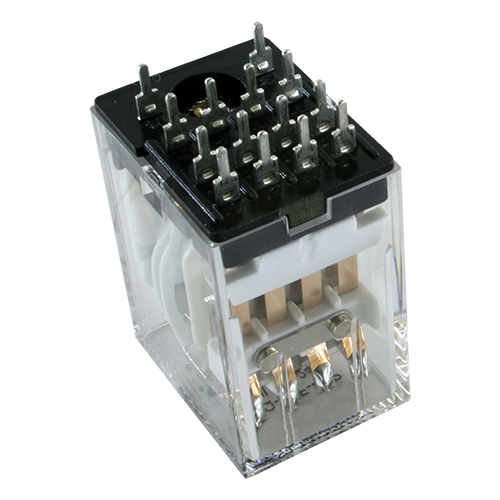

HLS-4453(18F)-4-P
HLS-4453(18F)-DC12V-4С-P
HLS-4453(18F)-DC24V-4С-P
HJQ-22F-12VDC-4ZP,
HJQ-22F-24VDC-4ZP |
85р. |
400шт
25шт
|
4 перекл.
(4C) |
5A 240VAC
5A 30VDC |
|
HH54P-12VDC-PCB, MY4-12VDC-PCB, 55.14.9.012.0000, JZX-18FF-4Cb-DC12V-1, RE-402DP, HLS-4453(18F)-DC12V-4C-P, LT-DC12V-4C, 952-4C-12DP, Y07-4C-12DP, HHC68B-2C12D PCB, MY4-02-12VDC, MPM-412D-C-3, SMET-412DP, SCLD-P-4PDT-C-12VDC, TRY-12VDC-P4C, WJ152-4C-P-12VDC, HF18FF/12-4Z2, HH54-RM4CB-DB, R4-2012-25-1012, PT521012, AZ164-4C-12D, AZ1641-4C-12D, HC4-HP-DC12V, BMY-4CP-12VDC, KHAE-11D17-12, YL440-4C-12VDC-P, NRG52-2-C-12D-P
|
 |

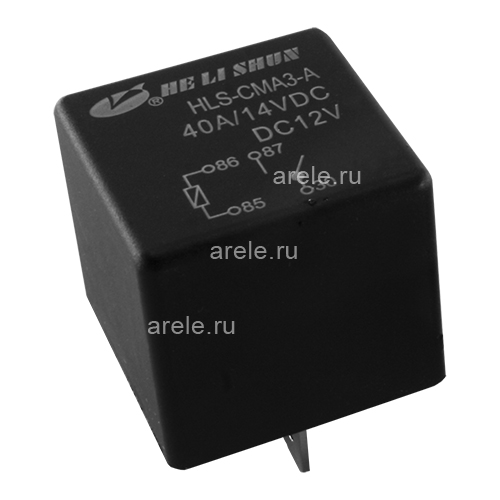

HLS-CMA3-A-NS
HLS-CMA3-DC12V-A-NS
HLS-CMA3-DC12V-C-NS-P
HLS-CMA3-DC12V-C-D1
HLS-CMA3-DC24V-A-NS
HLS-CMA3-DC24V-C-NS
HLS-CMA3-DC24V-C-D1
|
77р. |
600шт
15шт
|
1 вкл.
(1A) |
40A 14VDC |
|
AS406-1(CM6331)-1H-12VDC, NVF4-1-A-Z-40a1-DC12V-1.6, GRL-S-112DM, CMA31-DC12V-A-NS, CMA36-S-DC12V-A, 961A-1A-12D, NRA-04-A-12D, G8JN-1A2T-12VDC, MAH-S-112-A-1, MAH1-S-112-A-1, CMA3 12VDC (792H) 30A, SARE-S-112DM, SARL-112DM, 896-1AH-D-12VDC, SLD-12VDC-S-L-A, TRV4-L-12V-H, TR93-12VDC-SC-A, WJ204-1A-12VDC, HFV4/12-1H1S, HFV4N/12-1H1, V23234-A001, AZ973-1A-12D-C3, CB1a-12V |
 |

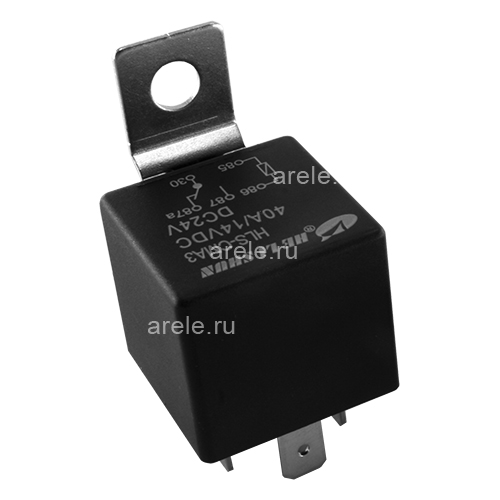

HLS-CMA3
HLS-CMA3-DC12V-A
HLS-CMA3-DC12V-C
HLS-CMA3-DC24V-A
HLS-CMA3-DC24V-C
|
68р. |
600шт
15шт
|
1 перекл.
(1C) |
40A 14VDC |
|
AS403(RL15)-1Z-12VDC, AS404(JD1929)-1Z-12VDC, AS406(CM6331)-1Z-12VDC, NVF4-2a-C-Z-40a1-DC12V-1.6, CMA31-DC12V-C, 961A-1C-12DM, NRA-04-C-12D-B, G8JN-1C2T-F-12VDC, MAH-S-112-C-3, MAH1-S-112-C-3, SARE-S-112DF, SARL-112DF,
896-1CH-D1S-12VDC, SLD-12VDC-S-L-C, TR93F-12VDC-SC-C, HKV5(HKV4)-DC12V-1C, WJ204-1CF-12VDC, HFV4/12-1Z6S, V23234-C001, AZ973-1C-12D-C1 |
 |

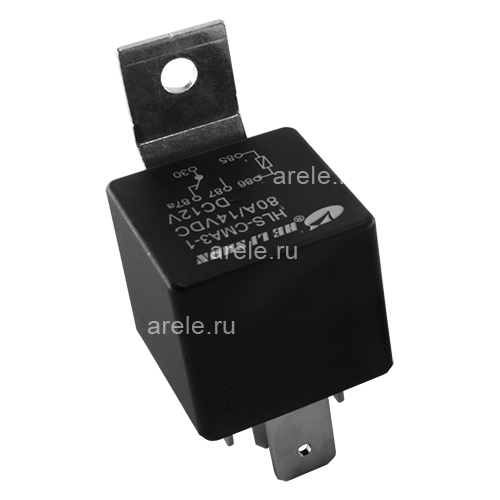

HLS-CMA3-1
HLS-CMA3-1-DC12V-A-Q
HLS-CMA3-1-DC12V-C-Q
HLS-CMA3-1-DC12V-C-NS-Q
HLS-CMA3-1-DC12V-C-NS-P
HLS-CMA3-1-DC24V-A-Q
HLS-CMA3-1-DC24V-C-Q
HLS-CMA3-1-DC24V-C-NS-P
JD1949-12VDC-C,
JD1949-24VDC-A,
JD1949-24VDC-C |
93р. |
200шт
10шт
|
1 перекл.
(1C) |
80A 14VDC |
|
NVF4-4-C-Z-80a-DC12V, Y16-1C-12DM, SLDH(T92)-12VDC-F-L-C, TRV6-12VDC-1Z-F, TR94F-12VDC-SC-C, AZ979-1C-12D, CB1H-M-12V, YL368-C-12VDC, NRA-07-1C-12DM
|
 |

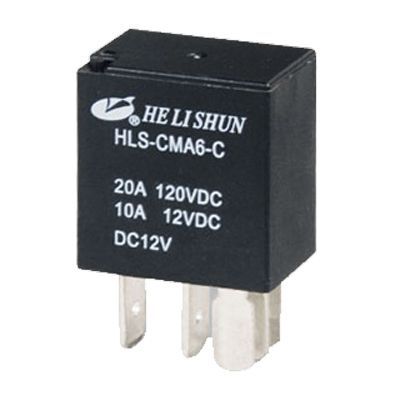

HLS-CMA6 (Не выпускается)
HLS-CMA6-DC12V-C
HLS-CMA6-DC24V-C
CM6311-1H-12VDC,
CM6311-1H-24VDC |
69р. |
1000шт
50шт
|
1 перекл.
(1C) |
20A 14VDC |
|
|
 |

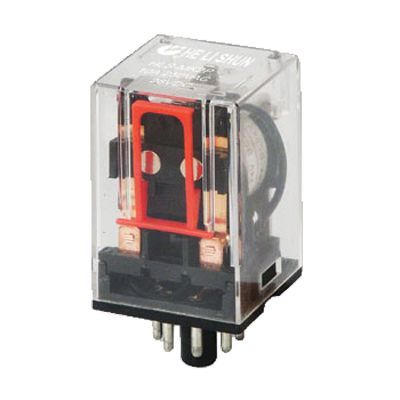

HLS-MK2P
HLS-MK2P-DC12V
HLS-MK2P-DC24V
HLS-MK2P-AC220V
|
160р. |
400шт
20шт
|
2 перекл.
(2C) |
10A 240VAC
10A 280VDC |
|
|
 |

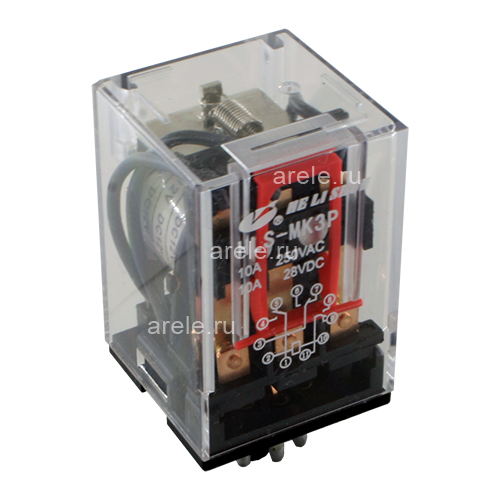

HLS-MK3P
HLS-MK3P-DC12V
HLS-MK3P-DC24V
HLS-MK3P-AC240V
MK3P-I-24VDC,
MK3P5-I-24VDC |
232р. |
400шт
20шт
|
3 перекл.
(3C) |
10A 240VAC
10A 280VDC |
|
AS80.3-1-12VDC, AS90.3-1-12VDC, 703-XC-1-12VDC, HF10FF/012D-3Z-1, RUB3C1-012, CR-U0012DC3
|
 |

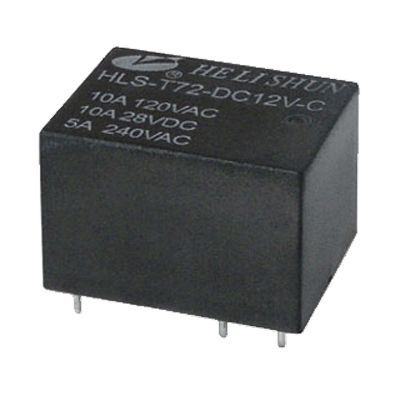

HLS-T72
HLS-T72-DC12V-C
HLS-T72-DC24V-C
|
50р. |
1000шт
50шт
|
1 перекл.
(1C) |
5A 240VAC
10A 28VDC |
|
|
 |

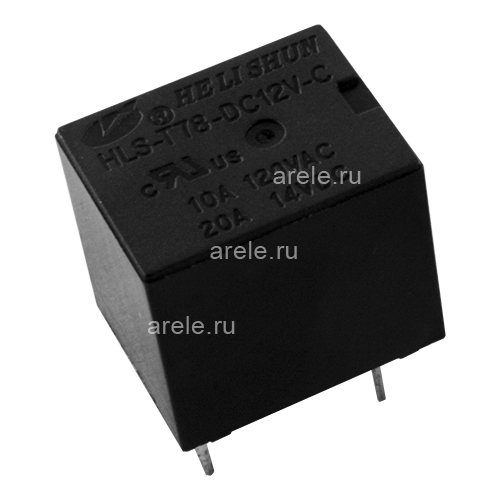

HLS-T78
HLS-T78-DC5V-C
HLS-T78-DC12V-C
HLS-T78-DC24V-C
4181(T74)-12VDC-0.6,
4181(T74)-24VDC-0.6 |
25р. |
2000шт
25шт
|
1 перекл.
(1C) |
10A 120VAC
20A 14VDC |
|
JQC-T78-1Z 12VDC, NG8QN-CS-20-DC12V-0.69, NT78-CS-20-DC12V-0.6, JM-SH-112L, CMA58-S-DC12V-C, CMA51H-S-DC12V-C, 964-1C-12DS, NRP-18-C-12D-S-H, G8QN-1C4 12DC, T78 (T74) 12VDC 5A, SD-S-112D, SARD-SH-112D, 895-1C-S 12VDC, MAD-S-112-C, SRA-12VDC-C-L, TRKM(HJR-78F) L-12VDC-S-Z, TR81-12VDC-SC-C, HKV6M-DC12V-SH1C, HKV6-DC12V-SH1C, WJ118-1C-12VDC, HFKW/012-1ZW-L, FBR52-ND12-W, FBR51-ND12-W, AZ9471-1C-12DEA, CQ-C-12V, JJM1-12V, AZ947-1C-12D, 685867
|
 |

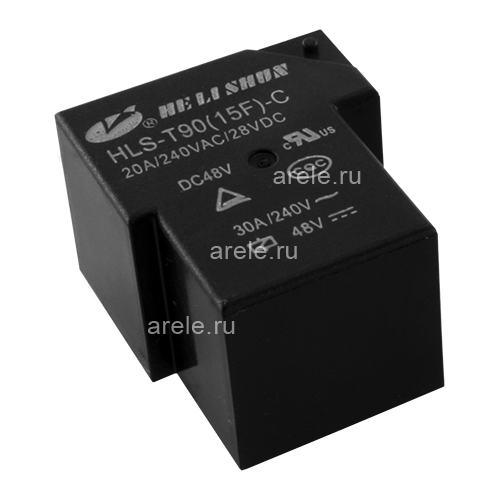

HLS-T90
HLS-T90(15F)-DC5V-C
HLS-T90(15F)-DC12V-C
HLS-T90(15F)-DC24V-C
HLS-T90(15F)-DC48V-CR
JQX-15F(T90)-12VDC-30A-0.9,
JQX-15F(T90)-24VDC-30A-0.9,
JQX-15F(T90)-12VDC-40A-0.9,
JQX-15F(T90)-24VDC-40A-0.9,
NT90R-NCE-AC220V-SB |
61р. |
500шт
25шт
|
1 перекл.
(1C) |
20A 250VAC
20A 30VDC |
|
GU-SH-112D, CMP7-S-DC12V-C, NRP-15-C-12D, G8P-1C4P-12VDC, SLA-SH-112D, 805-1CC-S-12VDC, 855AP-1CS-12VDC, 832-1C-S-12VDC, SLA(T90)-12VDC-S-L-C, HJQ-15F-S-Z-12VDC, TR90-12VDC-SB-C, WJ115-1C-12VDC, HF165FD/12-ZY2S, HF2150-1C-12DE, JTN1S-PA-F-12V, BS-901CS-12VDC, T9A-S5L-12-12, JTV1-SPA-12V, T90-S5D12-12
|
 |

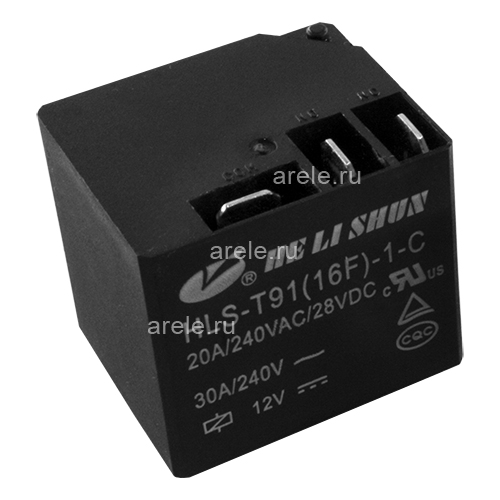

HLS-T91-1
HLS-T91(16F)-DC5V-C
HLS-T91(16F)-DC12V-C
HLS-T91(16F)-DC24V-C
JQX-30F(T91)-1H-12VDC-30A-0.9,
JQX-30F(T91)-12VDC-30A-0.9,
JQX-30F(T91)-24VDC-30A-0.9,
JQX-30F(T91)-12VDC-40A-0.9,
JQX-30F(T91)-24VDC-40A-0.9,
NT90T-NCE-AC220V-SB |
58р. |
400шт
20шт
|
1 перекл.
(1C) |
20A 250VAC
20A 30VDC |
|
CMP8-S-DC12V-C, NRP-16-C-12D, G8P-1C4TP-12VDC, G7G-1C2-CB-12VDC, SLC-S-112D, 805WP-1CC-S-12VDC, 855AWP-1CS-12VDC, 832WP-1C-S-12VDC, SLC(T91)-12VDC-S-L-C, HJQ-15F-1-S-Z-12VDC, WJ116-1C-12VDC, HF2100-1C-12DE, JTN1S-PA-F-DC12V, BS-902CS-12VDC, T9AS-5L22-12, JTV1-STMP-12V, T91-S5D22-12
|
 |

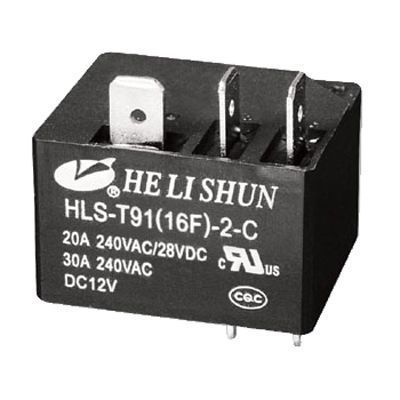

HLS-T91-2
HLS-T91(16F)-2-DC12V-C
HLS-T91(16F)-2-DC24V-C
HLS-T91(16F)-2-DC48V-C
NT90T-NLCS-DC12V-SB-0.9,
JQX-30F(T93)-48VDC-30A-0.9 |
86р. |
400шт
20шт
|
1 перекл.
(1C) |
20A 250VAC
20A 30VDC |
|
|
 |

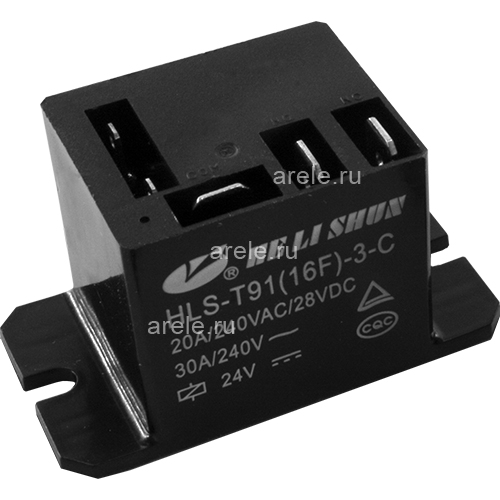

HLS-T91-3
HLS-T91(16F)-3-DC12V-C
HLS-T91(16F)-3-DC24V-C
NT90TP-NCE-AC220V-SF-0.9,
NT90TP-NLCE-AC220V-SF-0.9 |
85р. |
200шт
10шт
|
1 перекл.
(1C) |
20A 250VAC
20A 30VDC |
|
JQX-16FS(T92)-1Z 12VDC, NT90TP-HCE-DC12V-CB-2.8, GU-SS-112DFS, 953-1C-12DM, NRP-17-C-12D, G8P-1C4T-F-12VDC, 805WP-1CC-S1-12VDC, 855AWP-1C-S-12VDC, 832WP-1CC-S1-12VDC, SLCH(T92)-12VDC-SL-C, HJQ-15F-3 12VDC-S-Z, TR91F-12VDC-SD-C, HF105F-4/012D-1ZS, AZ2280-1C-12DF, T9AT9AS-5L52-12, T91-S1D52-12, YL224TP-C-S-12
|
 |

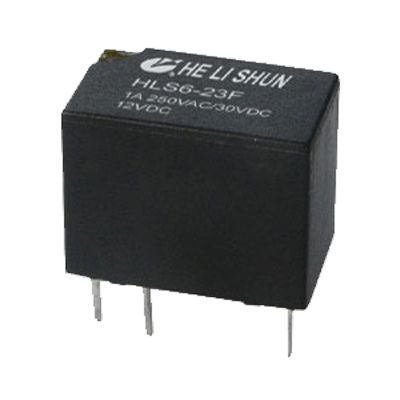

HLS6-23F
HLS6-23F-DC5V
HLS6-23F-DC12V
HLS6-23F-DC24V
JRC-23F-5VDC-S-0.2,
JRC-23F-12VDC-S-0.2,
JRC-23F-24VDC-S-0.2
|
27р. |
1000шт
20шт
|
1 перекл.
(1C) |
1A 125VAC
1A 30VDC |
|
TR5V L-12VDC-S-Z, JRC-23F-S1-DC12V, ST-SH-112T, HRB1-S-DC12V, Y14-1C-12DS, NRP-03K-C-12D, G5V-112VDC, MCC-S-112-CP, 23F 12VDC 3A, SYS-S-112D, TRG5-12VDC-SA-CD, HK23F-DC12V-SH1C, WJ103K-C-12VDC, HFD23/012-1ZP, SY-12-K-UL, RSM957N-0111-85-s012, V23111-A1012VDC, AZ957-1C-12DE, AZ9571-1C-12DE, AZ955-1C12DE, HY1-12VDC, TSC-112L3H, YL211H-S-DC12V |
 |

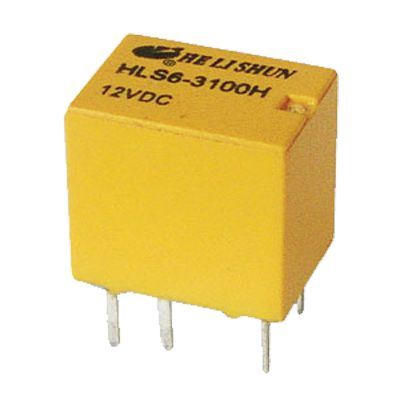

HLS6-3100H (Не выпускается)
HLS6-3100H-DC12V
HLS6-3100H-DC24V
|
35р. |
1000шт
25шт
|
1 перекл.
(1C) |
1A 120VAC
1A 24VDC |
|
|
 |

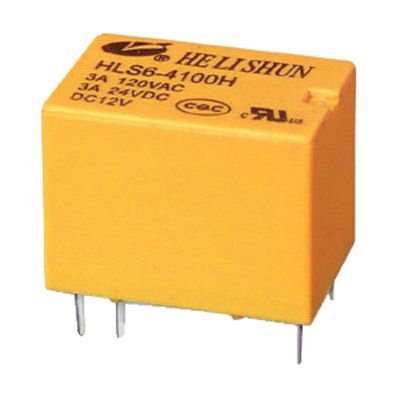

HLS6-4100H
HLS6-4100H-DC5V
HLS6-4100H-DC12V
HLS6-4100H-DC24V
HJR-4102-L-05VDC-S-Z,
HJR-4102-L-12VDC-S-Z,
HJR-4102-L-24VDC-S-Z,
JRC-21F(4100)-5VDC-0.2,
JRC-21F(4100)-12VDC-0.2,
JRC-21F(4100)-24VDC-0.2 |
23р. |
1000шт
25шт
|
1 перекл.
(1C) |
3A 120VAC
3A 24VDC |
|
HJR-4102 L-12VDC-S-Z, JRC-21F(4100)-1Z 12VDC, MCA-S-112-CH, N4100-CHS-3-DC12V, UA-SH-112D, HRS1-H-S-DC12V, HFD41/12VDC-HS3, HFD16/12-ZFH-3, 946H-1C-12D, NRP-02-C-12D-H, G2E-184P-H-M-12VDC, RSM954N-0111-85-1012, 4100H 12VDC (842) 2A, SYS1-SH-112D, 842-1C-S 12VDC, SRS-12VDC-S-H, TRB-12VDC-SB3-CL, TRB1-12VDC-SB3-CL, HK4100F-DC12V-SH, HFD41/12VDC-HS3, FBR211-SC-D012, AZ952-1CH-12DE, RSM954N-0111-85-1012, HM4100F/012-H-S, V23101-D0-A-106, AZ954Y-1C-12DS, BS-102BS-12VDC, YL101-C-12VDC |
 |

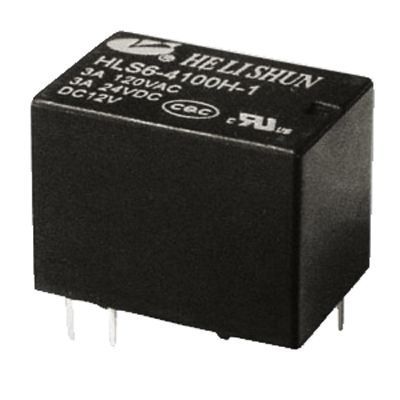

HLS6-4100H-1
HLS6-4100H-1-DC5V
HLS6-4100H-1-DC12V
HLS6-4100H-1-DC24V
HJR-4102E-L-12VDC-S-Z,
HJR-4102E-L-24VDC-S-Z |
26р.
|
1000шт
25шт
|
1 перекл.
(1C) |
3A 120VAC
3A 24VDC |
|
HJR-4102E L-12VDC-S-Z, N4100F-2-CHS-3-DC12V, AZ-SH-112L, HRS1KH-S-DC12V, 946H-1C-12DF, NRP-03-C-12D-H, SYS1K-SH-112D, 842A-1C-S-12VDC, SRSZ-12VDC-S-H, TRBS-12VDC-SA-CL, TRB1S-12VDC-SA-CL, HK4101F-DC12V-SH, WJ102KH-1C-12VDC, HFD41A/12VDC-HS3, AZ951-1CH-24DE, FBR211-SE-D012, HM4101F/012-H-S, MZ-12HS-K, V23101-D1-B-106, AZ954X-1C-12DS, BS-101S-12VDC, OUAZ-SS-112L, T81-H5D312-12, YL306H-DC12V |
 |

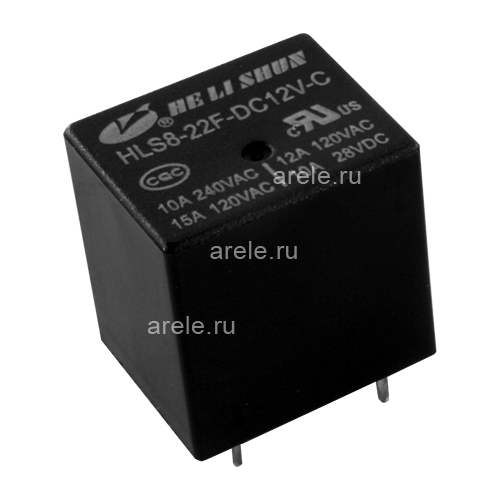

HLS8-22F
HLS8-22F-DC5V-C
HLS8-22F-DC9V-C
HLS8-22F-DC12V-C
HLS8-22F-DC24V-C
HLS8-22F-DC48V-C
HF152F/012-1ZS,
HF152F/012-1ZPSTQ |
30р. |
1000шт
50шт
|
1 перекл.
(1C) |
10A 120VAC
10A 30VDC |
|
HLS8-22F-12VDC-C, JZC-22F-1Z 12VDC, JZC-22F-SC-12A-L-DC12V, RUDH-SH-112D, RUUH-SH-112D, Y21H-1C-12DS, NRP-10-C-12D, G5LE-14-12VDC, MPB-S-112-C, SRU-SH-112D, 801H-1C-S-12VDC, SRU-12VDC-S-L-C, HJR-21FF-12VDC-S-Z, HRS4T-S-DC12V-C, TRU-12VDC-S-B-CD, HK21F-DC12V-SH, WJ110-1C-12VDC, HF21FF/012-1ZS, JQC-21FF/012-1ZS, AZ932-1CH-12D, SRUDH-SS-112D1, T7C-S5D-12, T70-L5D1-64-12, Y302EH-12VDC-S-Z, Y308-12VDC-S-Z |
 |

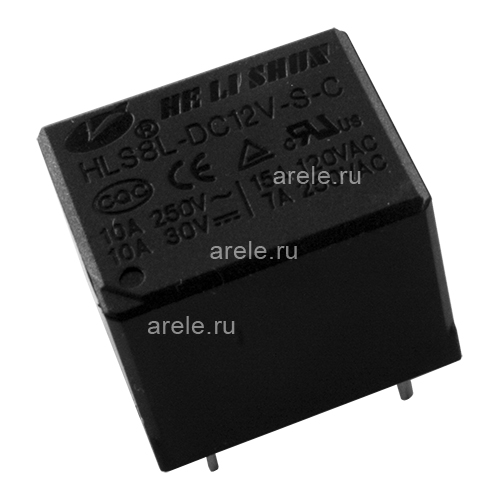

HLS8(HLS-T73)
HLS8L-DC5V-S-C (HLS-T73)
HLS8L-DC9V-S-C (HLS-T73)
HLS8L-DC12V-S-C (HLS-T73)
HLS8L-DC24V-S-C (HLS-T73)
HLS8L-DC48V-S-C (HLS-T73)
HJR-3FF-18VDC-S-Z
|
26р. |
1000шт
100шт
|
1 перекл.
(1C) |
10A 240VAC
10A 30VDC |
|
HJR-3FF-12VDC-S-Z, JQC-3F-1Z 12VDC, NT73-CS-10-DC12V, NT71-CS-7-DC12V-0.36, HRS4H-S-DC12V-C, NRP-07-C-12D-S, NCRP-07-C-12D-S, G5LA-14-12VDC, MPA-S-112-C, T73 12VDC (833H) 10A, SRD-SH-112D, SRDI-SH-112D, 833H-1C-S-12VDC, 899-1C-S-12VDC, SRD-12VDC-S-L-C, HJR-7FF-S-Z-12VDC, TRD-12VDC-SB-CD-12A, HK3FF-DC12V-S-H, WJ107-1C-12VDC, WJ108-1C-12VDC, HF7FF/012-ZS, HF3FA/012-ZS, HF7FD/012-1Z, FBR16-1SED012, RM51-3011-85-1012, AZ941-1CH-12D, AZ942-1CH-12D, AZ943-1CH-12D, JS1-12V, BS-115CS-7A-12VDC, PCE-112D1, T7S-S5E4-12, T7N-V5H1-12, ORWH-SH-112D, YL303H-S-12VDC-1Z |
* Цена включает НДС 20%
* Цена зависит от количества заказываемых реле (1 мин. упаковка/спайка, 1 ящик/коробка).
* Цена реле на 5vDC, 12vDC, 24vDC и прочие напряжения может незначительно отличаться.
* Точную цену можно посмотреть здесь - Прайс-лист.
|
|
